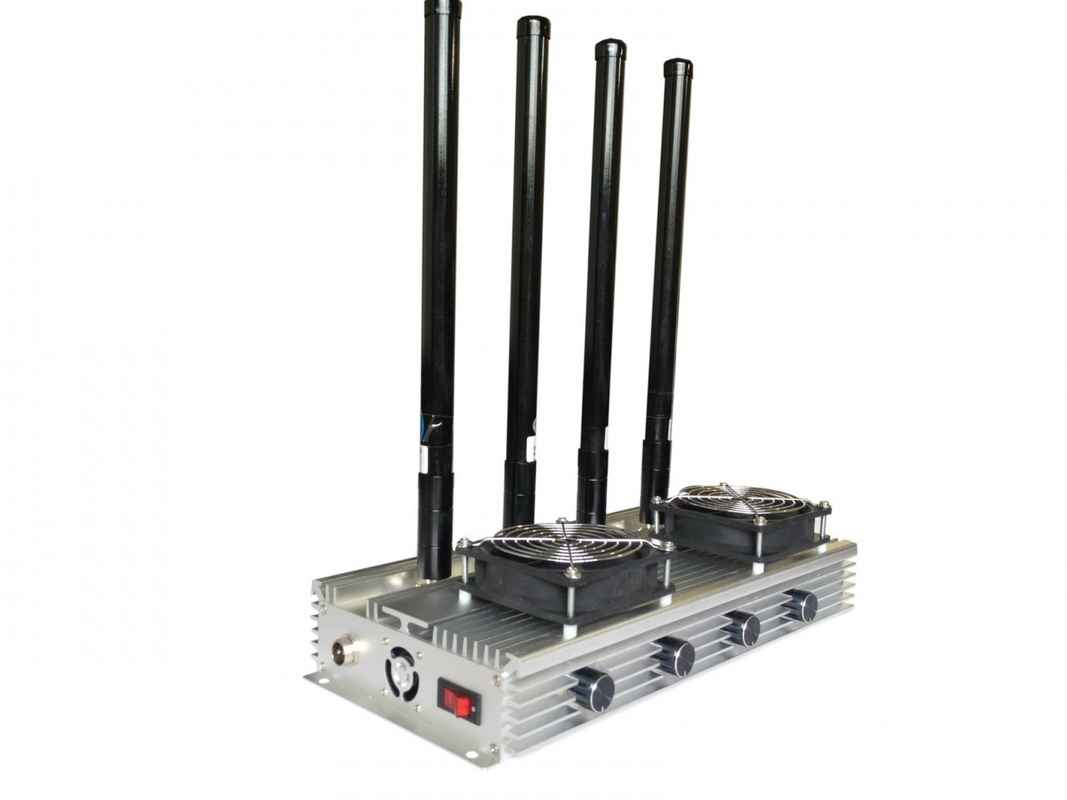

High power Cellphone GSM 3G Jammer indoor jammer 45w JAMMER Indoor

High power Cellphone GSM 3G Jammer indoor jammer 45w JAMMER Indoor

High power Cellphone GSM 3G Jammer indoor jammer 45w JAMMER Indoor

Product Details:

Place of Origin: China
Brand Name: HC
Certification: CE ISO FCC
Model Number: HC-101T4

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Netural packing
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description

Technical Parameters
A:Jamming Range: Radius of 40~120 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥60W, 10~15W per channel
C:Types of Mobile Phone Signals: GSM, CDMA, DCS, TD-SCDMA, CDMA2000, WCDMA
D:Other Signal Types: Wi-Fi, Bluetooth, etc.
E:Output Channel: 4 output channels
Shield all 2G/3G signals and jamming band can be customized;
Transmission power is 10W~15W per channel;
Standard configurations include a set of directional antennas, Omni antenna is available according to application environment requirements;
Good cooling performance, ensures the best work state and stability of jammer;
Sophisticated technology, aluminum alloy shell, never rust;
Stable performance, long service life;
ISO9001:2008 quality management system;
Main Parts
Host Directional Antenna Feeders Power

Detailed Technical Parameters


Band parameter Channel Frequency Average output power
●:CDMA 870~880MHz 12~15W
●:3G 2010~2170MHz 10~12W
●:DCS 1805~1880MHz 10~12W
●:GSM 925~960MHz 12~15W
Host size 376*180*85(protrusions included)
Power size 225*114*50
Package size 580*340*325(EPE+Carton)
Total weight 13Kg
Ambient temperature -40℃~55℃
Relative humidity 35~85%
Power consumption 350W
Power input AC 100V~240V
Power output DC 27V/13A
Installation mode Wall in field/Pole(with installation box)
Installation height 3~15m
Enclosure material Aluminum alloy


Product Details

Installation Instructions
1)The host connects with antenna (directional antenna or Omni antenna) by four RF feeders (about 3meters long);
2) Color label on each antenna terminal (Red/Green/Blue/Yellow) must match those on antenna when connected through feeders;
3) Omni antenna should be kept vertical position, the antenna spacing is greater than or equal to 50cm;
4)Four directional antenna should be towards the same goal area, the antenna facing region is main shielding area, the side and back shielding range is about 30% of the main shielding area;

5)Both antennas and feeders are waterproof, available to outdoors installation. The host without waterproof function should be installed inside or dry place. Or install the host outside with installation box; Omni antenna installed outside, in the roof no lightning rod needed, an open environment need to install lightning rod. The height of lightning rod should be higher than the Omni-directional antenna.
6) There are two temperature controlled fans on the host. They start automatically when shell temperature reaches the pre-set value as the host work for a certain time, the higher temperature is normal after a long time work.
7) The installation height of Omni antenna: suggest installing in half height of shielded building or a higher position than half height. The installation height of directional antenna: suggest installing in periphery of the main shielding body, height similar to the main shielding body, the directional antennas with appropriate angle turn towards the blocked areas.
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for five jammers or above.
Neutral jammers can be provided.
