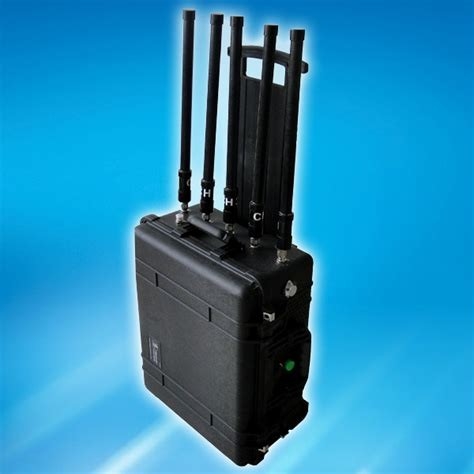

High-Power Draw-Bar Mobile Signal Jammer DD jammer IED jammer

Technical Parameters
A:Jamming Range: Radius of 100~500 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 800W, 50~140W per channel
C:Mobile Signal Types: Handset of all systems: GSM(Mobile/Unicom 2G), CDMA(Telecom), DCS(Mobile/Unicom1800M), TD(Mobile 3G), CDMA2000(Telecom 3G), WCDMA(Unicom 3G), 4G
D:Other Signal Types: all kinds of model remote control, wireless cheating tools, wireless microphones, radio telephones, PTT, Pagers, Remote control of car, wireless communication, GPS, Satellite phones, WLAN, Bluetooth, Wi-Fi, etc.
E:Output Channel: 10 output channels

Features
Drag box design can be installed in the car, convenient to use in different field application;
Ultra-wideband jamming coverage; continuously jamming wireless signals 20M~3000MHz;
Internal modular design can be flexible operation, 10 channels with fault alarm function can be managed separately;
Each channel module can start or close individually;
Efficient frequency division ensures the best interference effect on signals of different frequencies;
Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);
High gain antenna system makes the interfering signal more targeted , the effective power more centralized;
The built-in intelligent thermostat system ensures long-time running;
Sophisticated manufacturing technology, portable trolley-type case, easy to carry;
ISO9001:2008 quality management system;
Main Parts
Host LF/HF Antenna Power/Data Line Vehicle Antenna

Application
It is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.
